Users create new instances of application objects using the New page. The page contains the following elements:

  1. Page title
  2. Assistive text
  3. Object operations toolbar
  4. Collection operations toolbar
  5. Workflow progress indicator bar
  6. One or more form sections which contain either:
    • Simple fields and groups
    • A collections table
  7. Push panel for collection operations New and Edit



Layout

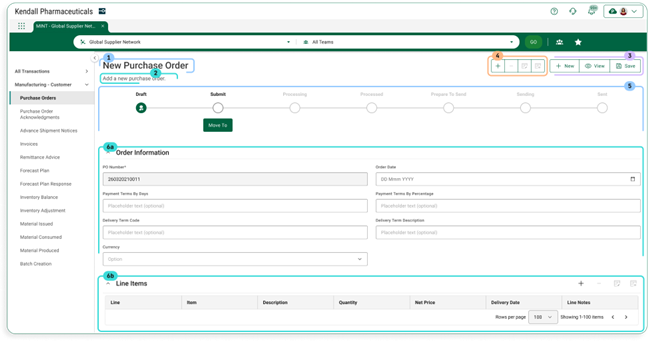

Sample Screen (User)

Default View

Default View

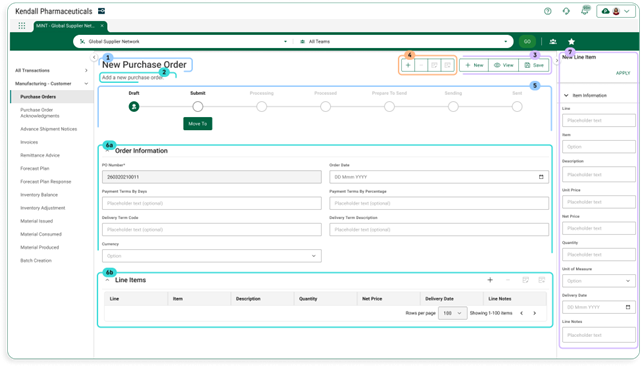

With Add Collection Row Push Panel

With New Collection Row Push Panel

With Edit Collection Row Push Panel

With Edit Collection Row Push Panel
Sample Screen (Solution Designer)

Default View

Default View



Configuration

Page Title

The page title shows the page’s title. The convention is that the value is “New” followed by the object that is being created (e.g. New Purchase Order).

Contents

Data TypeValueExample
Static TextNew [Object Type]New Purchase

Information for Solution Designers
The page title is a required element that cannot be removed from the page.

Design Conventions
Page title is “New [Object Type]” (e.g. “New Purchase Order”).

Configuration Options
Not applicable. The page title element’s design cannot be modified.



Assistive Text

Assistive Text is a text value that is set by the Solution Designer.

Contents

Data TypeValueExample
Static Text[Set by Solution Designer]Enter information for the new purchase order. At a minimum, you must supply values for the required fields.

Information for Solution Designers
Assistive text should always be displayed on Search pages.

Design Conventions

PropertyConvention
Text lengthNo more than 100 characters.
Writing styleAdheres to the Opus Writing Guidelines

Configuration Options

PropertyParameterOptionDescription
HiddenOn/OffOff (default)The page instructions are visible (i.e. not hidden). As a best practice, assistive text should always be visible in accordance with the design conventions.
OnThe page instructions are hidden.



Object Operations Toolbar

The buttons in the object operations toolbar apply to the page or main object, as opposed to the buttons on the collections toolbar, which apply to collections inside the page.

Contents

ElementTypeDescription
New

 		Toolbar ButtonSelecting this button navigates to a blank version of the same page, which is the same as reverting the page back to its default state. Any values entered are not saved.
Save and NewToolbar Button

Selecting this button does the following:

  • Validates the user’s entries (i.e. ensures that all required fields have values).
  • If validation does not pass, the user sees a corresponding error snackbar.
  • If validation succeeds, a new object instance is created with the current values of all fields, and a success message appears verifying the object is created.
  • The page refreshes and all fields revert back to their default state, so the user can create another new instance of the object.

SaveToolbar Button

Selecting this button does the following:

  • Validates the user’s entries (i.e. ensures that all required fields have values).
  • If validation does not pass, the user sees a corresponding error snackbar.
  • If validation succeeds, the new object instance is created and the user is navigated back to the object Search page.

Information for Solution Designers

Design Conventions
The object operations toolbar can be hidden, but only if there are no operations that can be performed on the page. Otherwise the object operations toolbar design cannot be modified.

Configuration Options

Applies ToPropertyParameterValuesDescription
ToolbarHiddenOff/OnOff (default)The toolbar is visible (i.e. not hidden).
OnThe toolbar is hidden.
Toolbar ButtonHiddenOff/OnOff (default)The button is visible (i.e. not hidden).
OnThe button is hidden.



Collection Operations Toolbar

The collection operations toolbar contains actions that apply to collections within the new object. Collections are a type of data element that can have multiple values within a particular object instance. For example, a collection of transaction IDs contains all transaction IDs that apply to a single Purchase Order. The collection operations toolbar appears at the top of the New page and above each collection table.


Contents

ElementTypeDescription
NewToolbar ButtonSelecting this button opens the New collection row push panel.
EditToolbar ButtonSelecting this button opens the Edit collection row push panel with data from the selected row in the active collection table. This button is only enabled if a row is selected.
RemoveToolbar ButtonSelecting this button removes the selected row from the active collection table. This button is only enabled if a row is selected.


Information for Solution Designers

Design Conventions
Not applicable. The collection operations toolbar design cannot be modified.

Configuration Options

Applies ToPropertyParameterValuesDescription
ToolbarHiddenOff/OnOff (default)The toolbar is visible (i.e. not hidden)
OnThe toolbar is hidden.
Toolbar ButtonHiddenOff/OnOff (default)The button is visible (i.e. not hidden).
OnThe button is hidden.



Progress Indicator

The progress indicator is an optional component that illustrates the state of the object instance. This is particularly useful for objects that go through a workflow. For example, a Purchase Order object may go from “To Do” (i.e. not started) to “In Progress” to “Done.”


Contents

ElementSub ElementTypeDescription
Active StateState NameTextThe name of the state (e.g. ”To Do,” “In Progress”). Configurable by the Solution Designer.
State IconIconIndicates the state is active.
Non-active StateState NameTextThe name of the state (e.g. ”To Do,” “In Progress”). Configurable by the Solution Designer.
State IconIconIndicates the state is not active.

Information for Solution Designers

Design Conventions

PropertyConvention
First state name (i.e. the initial state of the object)Use “To Do”
Last state name (i.e. the state of the object when the workflow is completed)Use “Done”

Configuration Options

Applies ToPropertyValuesDescription
Progress IndicatorHiddenOff (default)The indicator is visible (i.e. not hidden)
OnThe indicator is hidden.
Progress IndicatorNumber of statesNumberThe number of states in the workflow.
StateState NameTextThe name of the workflow state to display.



Form Section

A form section contains a form header and either:

  • A combination of simple fields (e.g. Name, ID) and groups (a predefined set of logically connected fields)
  • A collections table (described in the Collections Table section)

Contents

ElementTypeDescription
Section NameTextThe name of the section.
Section InputsSimple fields and groups

or

Collections table		A section can contain a combination of simple fields and groups or a single collections table. A collections table cannot be mixed with other inputs.

Information for Solution Designers

Design Conventions

PropertyConventions
Section Layout ColumnsFields inside TraceLink form groups can either appear in a one-column layout (with long fields) or a two-column layout (with shorter fields).
Section NameUse descriptive nouns for group names (e.g. “Shipping Address”). Do not include verbs in the section name. If the page has only one section, hide the section name because it will be redundant with the page title.
Section Fields and Groups

Each section should contain logically connected fields and groups. The best practice is to have between 3 and 8 fields per section.

  • If a section has fewer than 3 fields, consider merging it into another section, if they can be logically combined.
  • If a section has more than 8 fields, consider splitting it into separate sections, if they can be logically separated.


Configuration Options

Applies ToPropertyParameterValuesDescription
Section HeaderHiddenOff/OnOff (default)The header is visible (i.e. not hidden).
OnThe header is hidden.
Section HeaderCollapseOff/OnOn (default)The section can be collapsed and expanded. The corresponding icons are present.
OffThe section cannot be collapsed and expanded. The corresponding icons are not present.



Collection Table

A collection is a particular data element that can have multiple values within a particular object instance. For example, a Purchase Order object instance might have multiple transaction IDs, thus transaction IDs are a collection inside the Purchase Order object. Each collection inside an object is displayed in its own collections table.

Contents

ElementTypeDescription
Table FieldsField ListThe ordered set of fields contained in the table.
Table FieldText, Select List, or Date/TimeAn individual field for entering data to an item in the collection.

Information for Solution Designers

Design Conventions

PropertyConvention
Field OrderKey fields that help identify a particular row (e.g. Name, ID) should appear first (leftmost). Fields that are less likely to be used to identify a row (e.g. Date, Description) should appear after the key fields.


Configuration Options

Not applicable. The collection table design cannot be modified.



New Collection Row Push Panel

The New Collection Row push panel (accessed by selecting the New icon on the Collection Toolbar when a collections table is active) provides a means for users to add a new data row to a collection.

Contents

AreaElementDescription
HeaderPush Panel Title“New” static text.
Apply Button

Validates the user’s entries (e.g. ensures values supplied for all required fields) and then:

  • If validation fails, TraceLink shows the corresponding error message.
  • If validation passes, TraceLink adds the row to the collection table.
Close ButtonSelecting this button closes the push panel.
Push Panel ContentField ListAll fields that are displayed in the push panel. The fields that appear here can be set in the Opus Solution Environment (OSE).
Field (inside Field List)The label and corresponding data entry field.

Information for Solution Designers

Design Conventions

PropertyConvention
Field ListThe push panel should contain the same fields that are in the collection table.
Field List OrderThe order of the fields in the push panel should match the order of the fields in the corresponding collection table.

Configuration Options

The user sets the push panel field contents per the above conventions.





Edit Collection Row Push Panel

The Edit Collection Row Details push panel (accessed by selecting the Edit icon on the Collection Toolbar when a row in an active collections table is selected) provides a means for users to edit a row in a collection.

Contents

AreaElementDescription
HeaderPush Panel Title“Edit” static text.
Apply Button

Validates the user’s entries (e.g. ensures values supplied for all required fields) and then:

  • If validation fails, TraceLink shows the corresponding error message.
  • If validation passes, TraceLink updates the row in the collections table with the values that were entered in the push panel.
Close ButtonSelecting this button closes the push panel.
Push Panel ContentField ListAll fields that are displayed in the push panel. The fields that appear here can be set in the Opus Solution Environment (OSE).
Field (inside Field List)The label and corresponding data entry field.

Information for Solution Designers

Design Conventions

PropertyConvention
Field ListThe push panel should contain the same fields that are in the collection table.
Field List OrderThe order of the fields in the push panel should match the order of the fields in the corresponding collection table.

Configuration Options

The user sets the push panel field contents per the above conventions.
